"SHORTENING AND GHEE / VANASPATI" MACHINES AND PLANTS

With the name of "Shortening" it’s intended an emulsion of vegetable and /or animal oils used for frying or as an ingredient for the bakery industry (biscuits and cakes) to make the products softer, friable and crumby.
Its characteristic is to be solid at room temperature, to have a neutral flavor, to provide excellent performance in frying due to its higher smoke point and, last but not least, the economic convenience.

The name "Vegetable Ghee/Vanaspati" refers to an analogue of clarified or anhydrous butter but with a texture more granular and of exclusively vegetable origin.
It is mainly used for frying in Middle East and sub-Asian areas and can be supplemented with local spices and flavors.

EBM is able to provide all the equipment for the entire production cycle starting from the oil storage tank, the raw materials mixing system (Mixing tank), the COIMIX® machine (SSHE - Scraped Surface Heat Exchanger), the plasticizer (Pin Rotor), up to the packaging systems of the finished product.
Supplies may also be of individual machines or as complete "turnkey" plants.

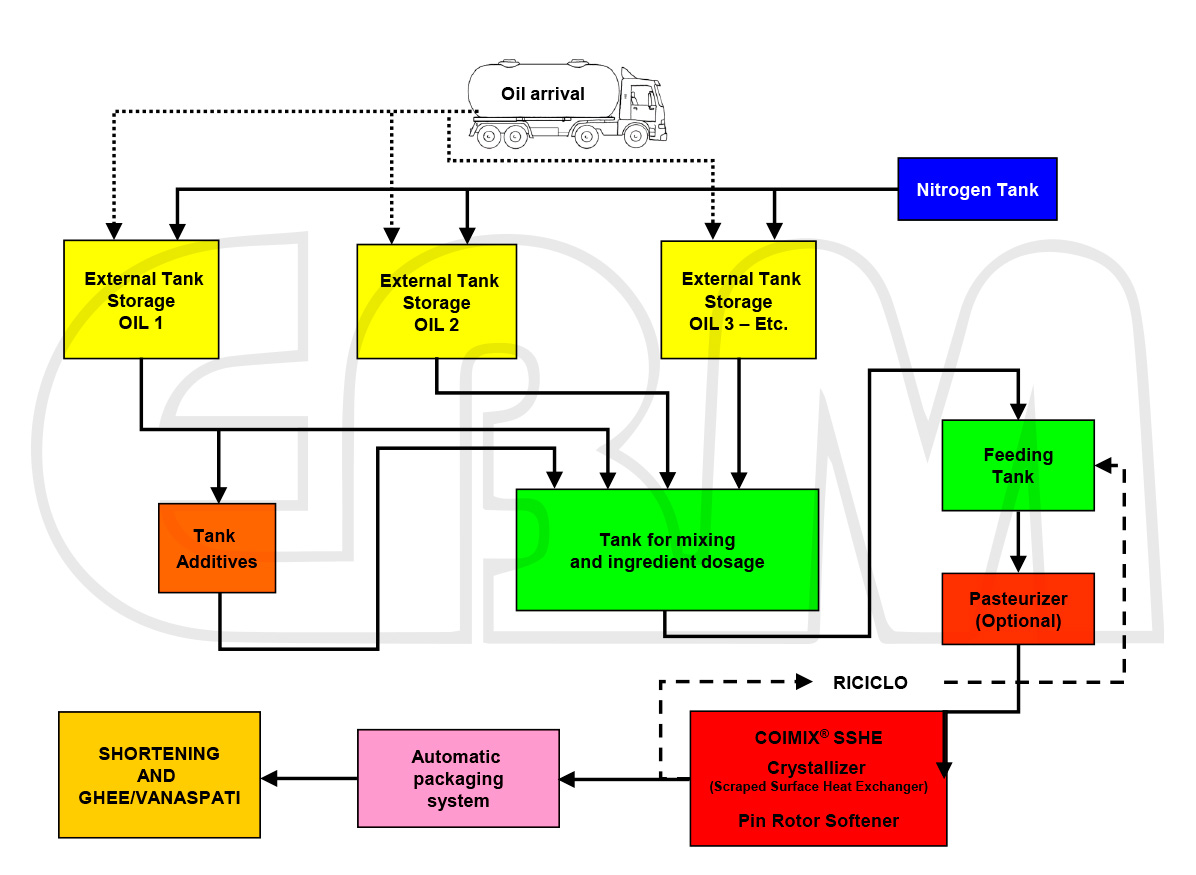

PRODUCTION PROCESS FOR SHORTENING AND GHEE / VANASPATI

EBM MACHINES AND PLANTS

•	Storage tanks for oils and fats with capacity from 10 to 100 tons.
•	Mixing tanks and ingredient dosing with the appropriate features required by the recipes to produce Margarine, Shortening, Ghee, Creams, Spreads, etc..
•	High pressure piston pumps with range up to 40 bar.
•	COIMIX® machines to crystallize the products through scraped surface heat exchangers (SSHE Scraped Surface Heat Exchanger) with hourly capacity as indicated at below table.
•	Plasticizers (Pin rotor) for laminating the product to the desired texture with hourly capacity also indicated at below table.
•	Fillers, weighing and product packaging system (cups, cans, boxes, etc.).
•	Auxiliary services required for a "turnkey" facility (refrigeration units, cooling towers, refrigerating plants, boilers, compressed air, etc.).
•	Plant and line to produce Margarine, Shortening, Ghee, etc. with hourly capacity according to customer's special requirements.

SOME INSTALLATIONS

COIMIX® STD GENERAL DATA
Model	21W/A	31W/A	42W/A	52W/A
Production rate	Kg/h	Kg/h	Kg/h	Kg/h
Table Margarine	1.200 ÷ 1.600	2.400 ÷ 2.800	3.800 ÷ 4.200	4.500 ÷ 5.000
Shortening/Ghee	1.800 ÷ 2.200	2.500 ÷ 3.200	4.000 ÷ 4.500	5.000 ÷ 6.000
Refrigerant gas	R404A or R507A	R404A or R507A	R404A or R507A	R404A or R507A
Number of Crystallizing tube	2	3	4	5
Power of Crystallizing tube (kW)	11 + 11	15 + 15 + 22	15 + 15 + 22 + 22	15 + 15 + 22 + 22 + 22
Number Plasticizer (Pin rotor)	1	1	2	2
Power of plasticizer (kW)	11 kW	11 kW	11 + 11 kW	11 + 11 kW
Type piston pump	5,5 kw 50 bar	7,5 kw 50 bar	11 kw 50 bar	11 kw 50 bar
Coimix® dimension L x W x H (m)	2,9 x 1,4 x 2	2,9 x 1,8 x 2	2,9 x 3,5 x 2	2,9 x 3,8 x 2
Shipping weight (kg)	2.900	3.800	4.200 + 1.400	4.800 + 1.900
